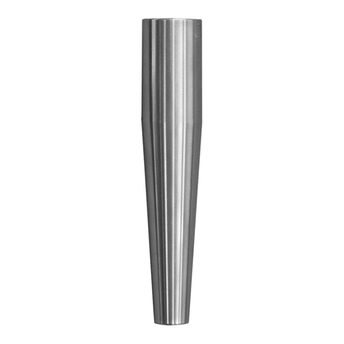

TU51 Weld-in barstock thermowell, US style

TU51 Weld-in thermowell, US style ©Endress+Hauser

Thermowell with weld-in process connections and round extension

The robust thermowell is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials.

Selectare rapidă

Alegeţi dintre opţiunile noastre sugerate
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

sau

Configurare individuală

Selectaţi în continuare dintre toate opţiunile posibile
  • Avantaje

    • Extension, immersion length and total length can be chosen according to process requirements

    • Modular configuration enable a use in all industrial processes with severe thermal and mechanical stresses

    • Fast response time with conical tip form

  • Domeniu de aplicare

    Designed for use with resistance and thermocouple thermometers in industrial or heavy duty applications.

    • For increased protection requirements of the temperature sensor regarding physical and chemical effects

    • For use in pipes and containers or tanks

    • ...

Caracteristici şi specificaţii

Înapoi

Details

  • Measuring principle

    Bar stock Thermowell

  • Characteristic / Application

    US-style

    weld-in process connections

  • Head connection

    internal thread:

    1/2" NPT

  • Maximum standard immersion length

    24"

  • Process connection

    weld-in

  • Thermowell root diameter

    1.050"

    1.315"

  • Medium contact material

    316/ 316L

    others on request

  • Wetted part finishing (Ra)

    32 µin (0.80 µin)

  • Tip shape

    tapered

  • Temperature range

    -200...700 °C (-328...1.292 °F)

  • Max. process pressure (static)

    500 bar (7252 psi)

  • Max. process pressure at 400 °C

    depends on configuration
