Deltatop DO65F

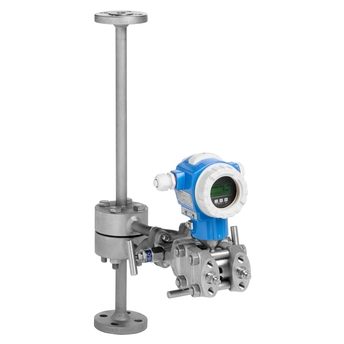

Deltatop DO65F - Differential pressure flow ©Endress+Hauser

Acest produs nu mai este disponibil.

Vă rugăm să consultaţi noua generaţie din secţiunea anterioară/ulterioară sau să contactaţi reprezentanţa locală Endress+Hauser.

Caracteristici şi specificaţii

Înapoi

Details

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice meter run with annular chamber corner taps.

  • Sensor features

    Internationally standardized.

    Including pipe section.

    Small pipe sizes DN10...50 ; 3/8...2".

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...50

    3/8" ... 2"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass.

    DN < 25 / 1" calibration recommended.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    0.4 ... 550m3/h

    2.0 ... 2750 kg/h at 10bar/230°C

  • Max. process pressure

    PN6 ... 160

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice meter run with annular chamber corner taps.

  • Sensor features

    Internationally standardized.

    Including pipe section.

    Small pipe sizes DN10...50 ; 3/8...2".

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...50

    3/8" ... 2"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass.

    DN < 25 / 1" calibration recommended.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    0.4 ... 550m3/h

  • Max. process pressure

    PN6 ... 160

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice meter run with annular chamber corner taps.

  • Sensor features

    Internationally standardized.

    Including pipe section.

    Small pipe sizes DN10...50 ; 3/8...2".

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...50

    3/8" ... 2"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass.

    DN < 25 / 1" calibration recommended.

  • Measuring range

    0.02 ... 40m3/h

  • Max. process pressure

    PN6 ... 160

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI
