Picture of electromagnetic flowmeter Proline Promag P 10 for basic process applications

Proline Promag P 10
electromagnetic flowmeter

Flowmeter for basic process applications with easy-to-use operation concept

5PBB
Se încarcă preţul
Preţurile sunt temporar indisponibile
Price on request

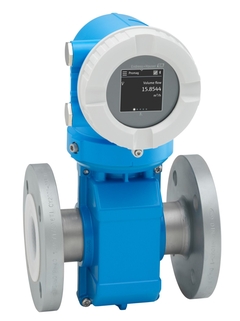

Picture of electromagnetic flowmeter Proline Promag P 10 for basic process applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promag P 10 for basic process applications

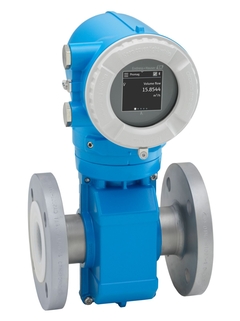

Picture of electromagnetic flowmeter Proline Promag P 10 for basic hazardous process applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promag P 10 for basic process applications also in hazardous areas

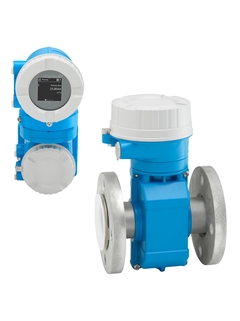

Picture of electromagnetic flowmeter Proline Promag P 10 as a remote version
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promag P 10 with remote transmitter and lap-joint flanges for basic process applications

Proline Promag P 10 for basic process applications

Heartbeat Technology IO-Link digital communication technology

Specificaţii pe scurt

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • Measuring range

    4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

  • Medium temperature range

    Liner material PFA: –20 to +150 °C (–4 to +302 °F)
    Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Wetted materials

    Liner: PFA; PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Domeniu de aplicare

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

  • Dedicated to chemical and process applications with corrosive liquids.


Device properties

  • Nominal diameter: max. DN 600 (24")

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • System integration with HART, Modbus RS485

  • Flexible operation with app and optional display

Avantaje

  • Diverse applications – wide variety of wetted materials

  • Accurate measurement independent of disturbed flow profiles after obstacles in the pipe thanks to 0 x DN full-bore option

  • Energy-saving flow measurement – no pressure loss due to cross section constriction

  • Maintenance-free – no moving parts

  • Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen

  • Simple, time-saving commissioning – guided parameterization in advance and in the field

  • Integrated verification – Heartbeat Technology

Clipuri video

  • Proline 10 – uncompromisingly simple

  • The world's first electromagnetic flowmeter for unrestricted measurements

  • The Electromagnetic Flow Measuring Principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant

  • The SmartBlue app

    Imagine you run all devices safely and reliably from a comfortable place: With the SmartBlue app you commission, operate and maintain Endress+Hauser devices via Bluetooth® wireless technology.
